دليل سقف غرفة الحديقة: أحجام الأخشاب، والمسافات، وحسابات الأحمال أصبحت أسهل

Over the years, I’ve been building garden rooms and other garden structures, and one question I hear time and time again is: “What timber sizes should I use for a flat roof? How far apart should the rafters be, and what’s the maximum span?” Choosing the right timber for a flat roof isn’t just about following a rule of thumb; it’s about understanding spans, loads, and spacing to ensure your roof is strong, safe, and durable.

In the UK, there’s an added consideration: planning permission restrictions. If you want to build a garden room without submitting a planning application, the whole structure generally needs to stay under 2.5 meters in height. This limit can influence the type of roof you choose. You’ll often need to keep the roof profile as thin as possible, while still making sure it is well-insulated and structurally sound, a careful balance that requires good planning and the right timber selection.

That’s why I’ve put together this Garden Room Roof Guide, designed to make timber selection, span calculations, and load considerations simple and easy to understand. Whether you’re planning a DIY project or just curious about flat roof construction, this article will help you confidently pick the right timber, space your rafters correctly, and stay within safe maximum spans. By the end, you’ll know exactly how to approach your flat roof project with confidence, using practical tips I’ve learned from years of building garden structures.

If you’d like step-by-step instructions, check out this garden room build guide with full plans and a 3D SketchUp model to help you design and construct your own project from start to ينهي.

Understanding Flat Roof Loads

When designing a garden room with a flat roof, it’s crucial to understand the different types of loads your roof will bear. These loads influence the size and spacing of your timber rafters, ensuring structural integrity and compliance with building regulations.

1. Dead Load (Permanent Load)

The dead load refers to the permanent weight of the roof structure, including:

• Timber rafters and decking
• Insulation materials
• Roofing membrane or covering
• Ceiling finishes (e.g., plasterboard)

This load is constant and must be accounted for in the design to ensure the roof can support its own weight without excessive deflection or failure.

2. Imposed Load (Live Load)

The imposed load encompasses temporary or variable loads, such as:

• Snow accumulation
• Maintenance access (e.g., occasional foot traffic)
• Equipment or materials stored on the roof

In the UK, the typical imposed load for flat roofs without permanent access is 0.75 kN/m², which includes considerations for snow load and maintenance.

3. Combining Loads for Design

For accurate design, both dead and imposed loads must be combined to determine the total load the roof will experience. This combined load influences the selection of timber size and spacing to ensure safety and compliance with regulations.

Timber Selection: C24 Grade at 400mm Centres

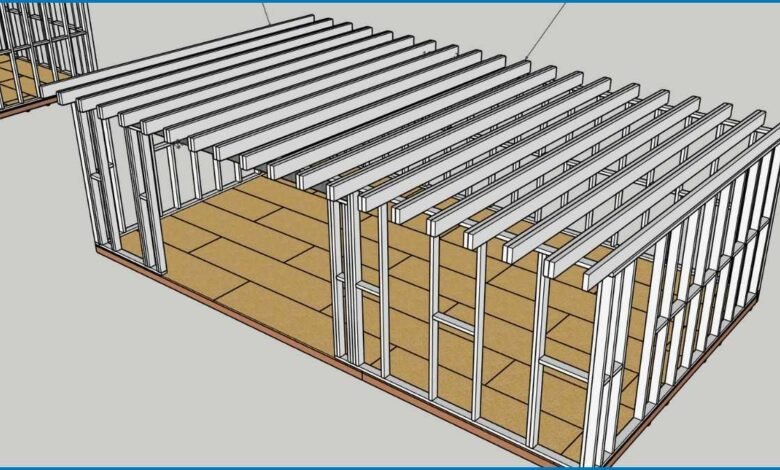

For a flat roof spanning 4 meters, using 47×195 mm C24 timber at 400 mm centres is a common and effective choice. This configuration balances structural strength with material efficiency.

Maximum Clear Spans for C24 Timber

According to the Timber Development UK span tables, the permissible clear spans for 47×195 mm C24 timber at 400 mm centres are:

• Dead load ≤ 0.50 kN/m²: Maximum span of 5.07 meters.
• Dead load ≤ 0.75 kN/m²: Maximum span of 4.78 meters.
• Dead load ≤ 1.00 kN/m²: Maximum span of 4.52 meters.

Taylor Maxwell

Given that your roof spans 4 meters, this timber size and spacing are more than adequate for typical domestic flat roof applications.

Example Span Table

To further illustrate, here’s an excerpt from the Timber Development UK span tables for C24 timber at 400 mm centres:

Taylor Maxwell

This table confirms that for a 4-meter span, the selected timber size and spacing are well within safe limits.

Practical Considerations

• Spacing: Standard rafter spacing is typically 400 mm centres, balancing material cost and structural performance.
• Insulation: Ensure adequate insulation thickness to meet building regulations and achieve desired thermal performance.
• Ventilation: Proper ventilation is essential to prevent condensation and maintain the longevity of the roof structure.

Rafter and Joist Spacing: Finding the Right Balance

Once you’ve chosen your timber size, the next key consideration for a flat roof is the spacing between rafters or joists. The spacing directly affects the roof’s strength, its ability to support loads, and even the final height of your garden room roof, which can be especially important if you’re trying to stay under the 2.5m planning permission limit in the UK.

Standard Rafter Spacing

For 47×195 mm C24 timber, the most common spacing options are:

• 300 mm centres:
  • Creates a very strong roof.
  • Useful if your roof will carry extra loads, such as paving slabs, solar panels, or a heavy roof finish.
  • Slightly increases timber usage and cost.
• 400 mm centres:
  • The most commonly used spacing for typical garden room roofs.
  • Balances strength, material efficiency, and ease of installation.
  • Suitable for most domestic flat roofs with standard insulation and roofing membranes.
• 600 mm centres:
  • Can be used if you increase the timber depth to maintain strength.
  • Fewer rafters mean faster installation and reduced material costs.
  • Requires careful attention to insulation support and membrane durability to avoid sagging.

How Spacing Affects Timber Size

• Wider spacing → requires deeper or stronger timber to maintain the same load capacity and deflection limits.
• Closer spacing → allows you to use shallower timber, saving headroom and keeping the roof profile lower.

For garden rooms, 400 mm centres with 47×195 mm C24 timber is often the ideal compromise: strong enough for typical loads, cost-effective, and allows for a well-insulated, low-profile roof that stays within planning limits.

Practical Tips

1. Add noggins or blocking between rafters at mid-span to prevent twisting and improve rigidity.
2. Check end bearing lengths on walls or beams (typically ≥ 40 mm) to ensure the rafters are properly supported.
3. Consider insulation depth: make sure your chosen spacing allows enough room for your insulation thickness without compromising structural performance.

Calculating Maximum Spans for Your Garden Room Roof

Understanding maximum spans is essential when designing a flat roof for your garden room. The span of your rafters determines whether your roof will safely support its own weight, insulation, and any temporary loads such as snow or maintenance access.

Step 1: Identify Timber Size and Grade

For this example, we’ll use the commonly selected timber:

• Size: 47 × 195 mm
• Grade: C24
• Rafter Spacing: 400 mm centres

This is a standard choice for a garden room roof spanning 4 meters.

Step 2: Determine Dead Load

Add up all permanent elements of the roof:

This value falls within the 0.50 kN/m² dead load band on the span tables.

Step 3: Add Imposed Load

The imposed load accounts for temporary or variable weights:

• Snow load (UK lowlands) ≈ 0.25–0.50 kN/m²
• Maintenance access ≈ 0.25 kN/m²

For a typical garden room flat roof without regular access, the imposed load is usually taken as 0.75 kN/m².

Step 4: Check Maximum Span in the Span Table

Referencing the Timber Development UK span table for 47×195 mm C24 timber at 400 mm centres:

Since our total dead load is 0.50 kN/m², and our imposed load is 0.75 kN/m², the maximum permissible span is 4.78 meters.

✅ Our garden room roof spans 4 meters, which is well within the safe limit, providing both strength and minimal deflection.

Step 5: Adjust for Special Conditions

If your roof will carry extra loads such as:

• Paving slabs
• Heavy plant on the roof
• Solar panels

You may need to either increase timber depth or reduce rafter spacing (e.g., 300 mm centres) to maintain safety.

Practical Tips and Final Recommendations

Designing and building a flat roof for your garden room requires careful planning, but with the right timber, spacing, and load considerations, it can be straightforward. Here are some practical tips to ensure your roof is structurally sound, well-insulated, and compliant with regulations:

1. Stick to Standard Timber Sizes and Grades

• 47×195 mm C24 timber is ideal for spans around 4 meters at 400 mm centres.
• Use C24 structural grade for guaranteed strength and durability.
• If your roof requires heavier loads or wider rafter spacing, consider deeper timber sections.

2. Mind the Spacing

• 400 mm centres is a common, balanced spacing.
• Reduce spacing to 300 mm if you have extra load (paving, solar panels) or want a shallower roof profile.
• Wider spacing (up to 600 mm) requires deeper timber for the same strength.

3. Install Noggins for Stability

• Add noggins or blocking between rafters at mid-span to prevent twisting.
• This helps maintain rigidity and supports insulation boards properly.

4. Check End Bearing Length

• Ensure rafters sit securely on walls or beams with a minimum bearing length of 40 mm.
• Proper bearing prevents sagging and distributes load evenly.

5. Plan for Insulation and Ventilation

• Flat roofs often need well-insulated layers to meet building regulations.
• Ensure your rafter spacing accommodates insulation thickness without compromising structural performance.
• Include ventilation or breathable membranes to prevent condensation.

6. Consider UK Planning Restrictions

• To avoid planning permission, keep your garden room under 2.5 meters total height.
• A low-profile, well-planned roof balances insulation, structural integrity, and aesthetics.

• For roofs that will support solar panels, green roofs, or heavy materials, recalculate spans or reduce rafter spacing.
• Always err on the side of safety; oversized timber is better than a sagging roof.

8. Warm vs Cold Roof Designs

When planning your garden room, it’s essential to determine whether to construct a warm roof or a cold roof. A warm roof places the insulation above the rafters, keeping the structure warmer and reducing the risk of condensation. A cold roof, on the other hand, has insulation fitted between or below the rafters.

For most garden rooms, a cold roof is often the best option because of the UK’s 2.5 m height restriction. This design keeps the roof profile slimmer, allowing you to stay within planning limits while still achieving good insulation performance.

If you’d like a full breakdown of the differences, including pros and cons for each option, check out my guide on warm roof vs cold roof for garden rooms.

✅ Final Recommendations

1. Choose the right timber and grade: 47×195 mm C24 is suitable for most 4 m flat roofs.
2. Check spacing and spans: 400 mm centres works well for standard loads; adjust if needed.
3. Plan your insulation and roof finish: maintain a low profile while keeping the roof thermally efficient.
4. Use span tables and calculate loads: confirm your design is safe for both dead and imposed loads.
5. Add noggins and proper support: ensure stability, reduce twisting, and extend roof life.

By following these tips, you’ll have a strong, durable, and well-insulated flat roof for your garden room, staying within planning limits and giving you peace of mind.
